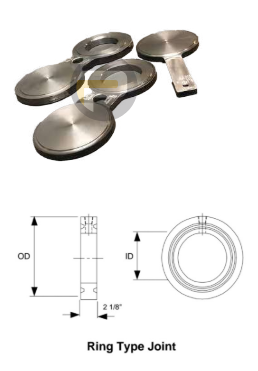

Spectacle Blinds are generally applied to permanently separating pipe systems, or just to connect with each other. A Spectacle Blind is a steel plate cut into two discs of a certain thickness. The two discs are attached to each other by section of steel similar to the nose piece of a pair of glasses. One of the discs is a solid plate, and the other is a ring, whose inside diameter is equal to that of a flange. Ring Spacer So as for the Spectacle Blind already described, maintenance on a pipe system can be a reason to temporarily replace a Ring Spacer for a Spade. By loosening of all bolts, and half of the bolts temporarily remove, the Spade or Spacer can be placed. After replacing the gaskets (new gaskets are to recommend), the bolts can be re-assembled and tightened. A small problem is that we basically cannot see, or a Spade or a Spacer mounted between the flanges. Therefore, the handles are often specially marked, or both have a different design; a customer often provides its own specification What should never lack is, that in the handle, the diameter and the Pressure Class of a Spade or Spacer is engraved; this applies also for the Spectacle Blind.
